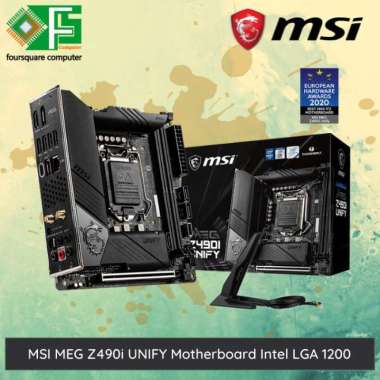

Dengan desain kompak Mini-ITX, motherboard ini mendukung prosesor Intel 10th dan 11th Gen Core. Dilengkapi dengan 2 slot DDR4 RAM hingga 64GB, PCIe 3.0 x16, dan 2 slot M.2 untuk penyimpanan cepat. Fitur audio Realtek ALC1220 dan koneksi USB 3.2 Gen2 memastikan performa optimal. Ideal untuk sistem gaming atau workstation yang efisien ruang.
Spesifikasi
Harga
Lazada
Rp3.005.000
1 produk
Rp3.500.000
25 produk(10 produk terjual)
Tokopedia
Rp3.990.000
29 produk
Rp4.635.900
7 produk
Spesifikasi
Informasi dasar
Merek
MSI
Model
MEG Z490I UNIFY
Faktor bentuk
Mini-ITX
Cipset
Intel Z490
Tipe soket
LGA 1200
Prosesor yang didukung
Intel 10th Gen Core, Intel 11th Gen Core, Intel Pentium Gold, Intel Celeron
Memori
Tipe memori
DDR4
Slot memori
2
Kapasitas memori maksimal
64
Unit kapasitas memori maksimal
GB
Kecepatan memori
5000
Unit kecepatan memori
MHz
Saluran memori
Dual-channel
Dukungan xmp
Ya
Slot ekspansi
Slot pcie
[{'type': 'PCIe 3.0 x16', 'quantity': 1, 'speed': 'PCIe 4.0 dengan CPU Gen 11'}]
Slot m2
[{'quantity': 2, 'interface': 'PCIe 3.0 x4/SATA3', 'max_speed': 'PCIe 4.0/3.0 x4'}]
Penyimpanan
Port sata
4
Kecepatan sata
6 Gb/s
Konektivitas
Port usb
[{'type': 'USB 3.2 Gen2 Type-A', 'quantity': 1, 'speed': '10 Gbps'}, {'type': 'USB 3.2 Gen2 Type-C', 'quantity': 1, 'speed': '10 Gbps'}, {'type': 'USB 3.2 Gen1', 'quantity': 4, 'speed': '5 Gbps'}, {'type': 'USB 2.0', 'quantity': 4, 'speed': '480 Mbps'}]
Jaringan
Wifi
Intel AX201, WiFi 6
Bluetooth
Bluetooth 5.1
Ethernet
Realtek RTL8125B 2.5G LAN
Output video
Hdmi
1
Displayport
1
Sistem daya
Fase daya
9-phase
Solusi vrm
90A Smart Power Stage
Konektor daya
[{'type': '8-pin', 'quantity': 1}, {'type': '24-pin', 'quantity': 1}]
Audio
Kodek
Realtek ALC1220
Saluran
7.1-Channel
Fitur
Nahimic 3 Audio, S/PDIF output
Pendingin
Header kipas
3
Heatsink
Frozr heatsink design, M.2 Shield Frozr
Spesifikasi fisik
Panjang
17
Unit panjang
cm
Lebar
17
Unit lebar
cm
Fitur
Fitur debug
EZ DEBUG LED
Fitur bios
Click BIOS 5
